CARIBBEAN DRYDOCK COMPANY S.A is strategically located in the Havana Bay, loved by everybody at the Caribbean Sea because she has the key which opens all navigational rotes from and towards the Gulf of Mexico. A place with excellent tropical weather, CDC S.A. is just ideal to offer maintenances and repair services to all those vessels navigating throughout its neighboring maritime waters, as well as those coming from other oceans via Panama Canal.

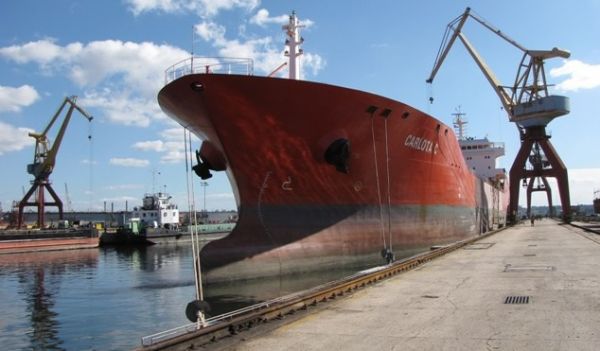

Shipyard has 6 piers totaling 100mts, to accommodate ships up to 292 mts length and 6,3 mts draft, also has one graving dock for ships till 152 mts length and 24 mts beam or 15000 Dwt. At all piers available the following facilities:
AC Electricity:60 Hz 110, 220, 380 440 [volts]. DC: 220 [volts].
Compressed Air: 7 Bar.
Fresh Water.
Sea water for cooling and firefighting purposes

Facilities
Piers: Seven (7) piers with a total length of 1100 m and depth of 6 m (max.)

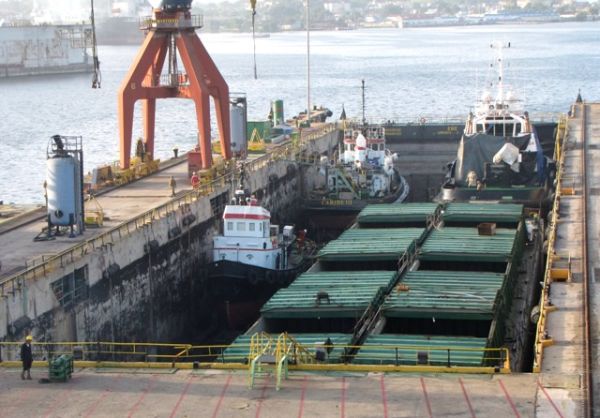

Docking capability for vessels up to: Graving dock
Dimensions: Between dock walls: 151.43×27.79 m
Width at the entrance: 22-25 m
Depth of water over keel blocks: 5.8-6.9 m
Height of keel blocks: 1.32-1.9 m

Floating Dock No.2 (Installation and commissioning in process)
Docking vessel maximum allowed dimensions: The 220-meter-long and 48-meter-wide dock can accommodate cargo ships up to 65,000 displacement tons
240 x 34.3 x 8 m  Lightship 22,000 T.L.C
